Copper Tube Aluminum Fin Dry Type Evaporator For Evaporative Cooler

  • 1
  • 2
  • 3

Brand Name : Gaoxiang

Model Number : BY - A02

Certification : CE / ISO

Place of Origin : China

MOQ : 1 ㎡

Price : Negotiation

Payment Terms : L/C , T/T

Supply Ability : 2000 ㎡ / Month

Delivery Time : 20 ~ 25 days

Packaging Details : Standard Export Packing

Products Name : Fin Tube Dry Type Evaporator

Material : Aluminum

Tube Material : Aluminum alloy

Usage : Refrigeration Parts

Refrigerant : R404a

Application : Refrigeration Parts

Contact Now

Copper Tube Aluminum Fin Dry Type Evaporator For Evaporative Cooler

Products Instruction :

Dry type evaporator , wire on tube evaporator and condenser , tube on plate evaporator , bounding evaporator , air condition installation copper kit / aluminum pipe kit ,aluminum pancake coil tube, capillary tube , Cu - AI connector , etc .

Unit Features - air Cooler Or Evaporator

  1. With steel plate coating casing , corrosion - proof , attractive appearance ;
  2. Aluminum fins around mechanically expanded copper tube make the coil with high efficiency heat exchange ;
  3. Configurated stainless steel electrically heating pipe with high defrosting efficiency ;
  4. Double water collector configurated to avoid water collector being freezed ;
  5. Long distance air duct is optional ;
  6. Standard power supply is 380V - 3PH - 50HZ , and other kinds of power supply is optional ;
  7. Stainless steel casing is optional .

Application:

Item Heat exchanger Type Operation
medium		 Operation
pressure
( MPa )		 Application
1 Φ16 / Φ9.52 / Φ12.7
Copper tube with aluminium fin		 Cold/hot water 1.6 Used for combined air handling uni t,
fan coil etc air conditioning devices
2 Φ18 / Φ20
Steel pipe winding with steel sheet		 Steam 0.2 Used for combined air handling unit ,
fan coil etc air conditioning devices
3 Φ16 / Φ9.52 / Φ12.7
Copper tube with aluminium fin		 Brine 1.6 Used for heat transfer in cold storage
and all kinds of low temperature
systems
4 Φ9.52 / Φ7.94 / Φ7
Copper tube with aluminium fin		 Ethylene glycol 1.6 Used of energy recovery and low
temperature system devices
5 Φ16
Copper tube with aluminium fin		 Ice mud 1.6 Used for dry operation condition ,
fresh air dehumidification etc systems
6 Φ9.52 / Φ7.94 / Φ7
Copper tube with aluminium fin		 R22 1.9 Used for industry and commerce air
conditioning system
7 Φ9.52 / Φ7.94 / Φ7
Copper tube with aluminium fin		 R407C 1.9 Used for industry and commerce air
conditioning system
8 Φ9.52 / Φ7.94 / Φ7
Copper tube with aluminium fin		 R134a 3.1 Used for vehicle and vessel etc
transportation devices

Product Tags:

water heat exchanger



industrial heat exchanger


Wholesale Copper Tube Aluminum Fin Dry Type Evaporator For Evaporative Cooler from china suppliers

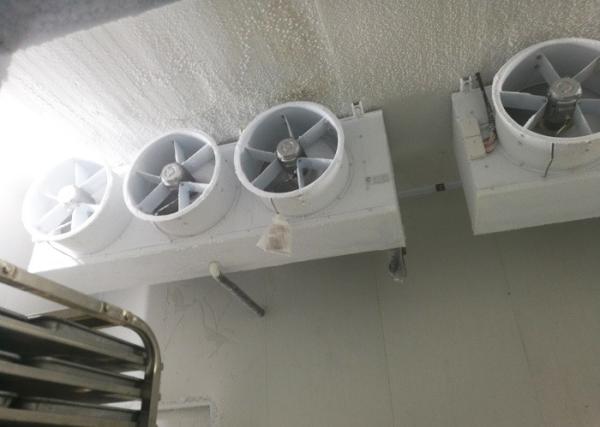

Copper Tube Aluminum Fin Dry Type Evaporator For Evaporative Cooler Images
