Aluminum Fin Dry Type Evaporator Air Cooled Copper Tube For Refrigeration Unit

Product Categories

Guangzhou Xiangbingyue Refrigeration Equipment Co., Ltd

Contact Now

Aluminum Fin Dry Type Evaporator Air Cooled Copper Tube For Refrigeration Unit

Name: Aluminum Fin Dry Type Evaporator Air Cooled Copper Tube For Refrigeration Unit
Brand: Gaoxiang
Price: 1 USD

Wholesale Aluminum Fin Dry Type Evaporator Air Cooled Copper Tube For Refrigeration Unit from china suppliers

Brand Name : Gaoxiang

Model Number : BY - A02

Certification : CE / ISO

Place of Origin : China

MOQ : 1 ㎡

Price : Negotiation

Payment Terms : L/C , T/T

Supply Ability : 2000 ㎡ / Month

Delivery Time : 20 ~ 25 days

Packaging Details : Standard Export Packing

Products Name : Fin Tube Dry Type Evaporator

Material : Aluminum

Tube Material : Aluminum alloy

Usage : Refrigeration Parts

Refrigerant : R404a

Application : Refrigeration Parts

Contact Now

Air Cooled Copper Tube Aluminum Fin Dry Type Evaporator For Refrigeration Unit

About Us :

We are a professional heat exchanger , condenser , evaporator , heat pump , air cooler and air conditioner manufacturer in China , which has more than 15 years experience in HVAC area .
Our products have been exported to Europe ,USA , Japan and Middle east etc .

Feature :
Material :copper , aluminum ,galvanized plate
Aluminum foil: hydrophilic or bare
Fin type: louver fin or flat fin or corrugated fin
Copper pipe: diameter 7mm or 8mm or 9.52mm ,grooved or smooth tube
Pitch of fins can be adjusted between 1.8-5.8mm.
Pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
Suitable for R134A, R22, R404A, R407C refrigerant and so on
Voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
Different alternative condensing fans available: shaded pole or outer rotor fan motor.
Did gas examination under 3.0Mpa air pressure to ensure the tightness.
Widely used in refrigeration industry, cold room and other cooling system.
We can supply products as per customized samples or drawing.

Application:

Item	Heat exchanger Type	Operation medium	Operation pressure ( MPa )	Application
1	Φ16 / Φ9.52 / Φ12.7 Copper tube with aluminium fin	Cold/hot water	1.6	Used for combined air handling uni t, fan coil etc air conditioning devices
2	Φ18 / Φ20 Steel pipe winding with steel sheet	Steam	0.2	Used for combined air handling unit , fan coil etc air conditioning devices
3	Φ16 / Φ9.52 / Φ12.7 Copper tube with aluminium fin	Brine	1.6	Used for heat transfer in cold storage and all kinds of low temperature systems
4	Φ9.52 / Φ7.94 / Φ7 Copper tube with aluminium fin	Ethylene glycol	1.6	Used of energy recovery and low temperature system devices
5	Φ16 Copper tube with aluminium fin	Ice mud	1.6	Used for dry operation condition , fresh air dehumidification etc systems
6	Φ9.52 / Φ7.94 / Φ7 Copper tube with aluminium fin	R22	1.9	Used for industry and commerce air conditioning system
7	Φ9.52 / Φ7.94 / Φ7 Copper tube with aluminium fin	R407C	1.9	Used for industry and commerce air conditioning system
8	Φ9.52 / Φ7.94 / Φ7 Copper tube with aluminium fin	R134a	3.1	Used for vehicle and vessel etc transportation devices

Product Tags:

water heat exchanger

tubular heat exchanger

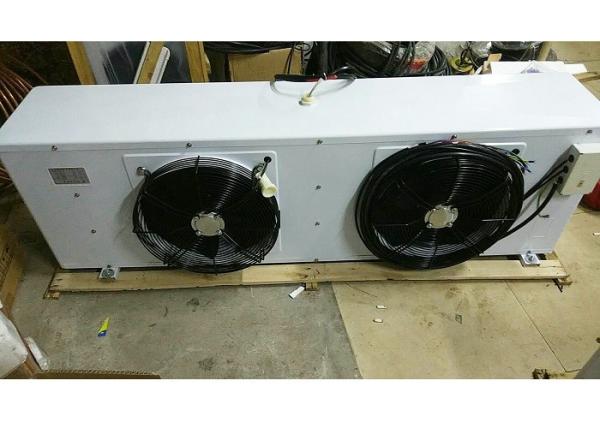

Aluminum Fin Dry Type Evaporator Air Cooled Copper Tube For Refrigeration Unit Images
