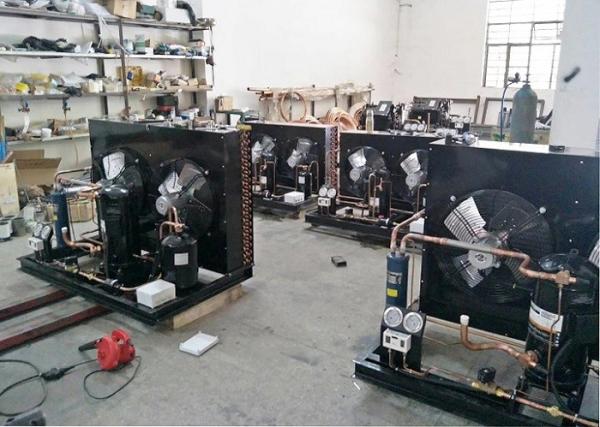

7HP Low Temperature Air Cooled Condensing Unit For Freezer Room
Client can choose the equipment type according to the using requirement and environment factors .
Refrigeration equipment type : Slide In / Drop In / Splits
Compressor Type: Hermetic / Semi - hermetic
Condenser Type : Air Cooled / Water Cooled
Throttle Type : Thermostatic Expansion Valve
Control Panel : Adopt microcomputer control system and automatic intelligent temperature controller . This has the function such as temperature display , setting , controlling , and defrosting and so on .
Defrost Type : Hot Defrosting / Electric Defrosting
Drain : Straight Line
Air - Cooled Refrigeration Unit Technical parameters :
1 . Condenser Details :
Qty Of Fan ( piece ) : 2
Air Volume ( m3 / h ) : 2 * 4500
Power of Fan ( W ) : 2 * 180
2 . Refrigerant Capacity Of Compressor :
a. Evaporating Temperature－25 ℃
Cooling Capacity : 8940 W
Power : 6350 W
b . Evaporating Temperature - 35 ℃
Cooling Capacity : 7160 W
Power : 6330 W
3 . Coupling
Tube Coupling : 5 / 8 〞
Suction Coupling : 1 - 3 / 8 〞
4 . Overall Dimensions :
Length ( L ) : 1430mm
Width ( B ) : 900mm
Height ( H ) : 880mm
5 . Mounting Dimensions :
Length ( D ) : 1390mm
Width ( E ) : 600mm
Standard configuration of units : compressor , condenser , liqid receiver , pressure controller , pressure gauge , filter , solenoid valve and wiring box , etc .
Note :
1 . Cooling capacity in the form iscalculated when the ambiernt temperature is 32℃.
2 . Configuration can be added according to customers' requirements .
3 . When the compressor using refrigerant R22,and evaporating temperature lower than - 15 ℃ cylinder head fan must be installed . When the evaporating temperature below - 25 ℃ the compressor hydrojet system also must be installed .
4 . When the compressor using refrigerant R404a ,and evaporating temperature lower than - 20 ℃ cylinder head fan must be installed .
