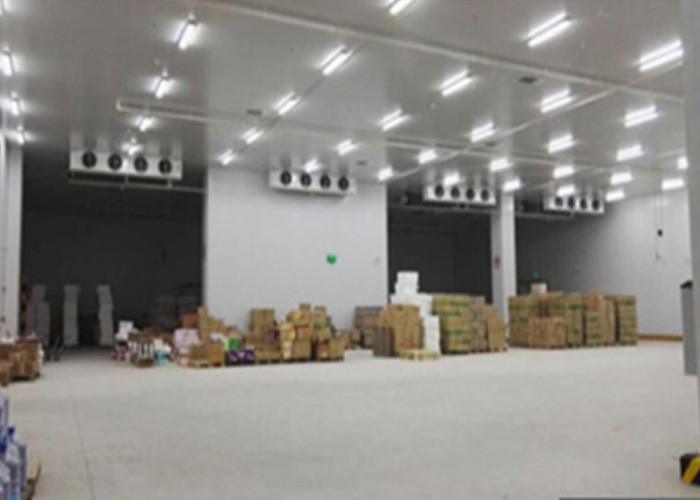

Fruit / Vegetable Cooler Cold Storage Room With 50 ~ 200mm Pu Sandwich Panel
Products Instruction :
The basic principle is : put the harvested fruits , vegetables and edible fungi etc into the vacuum processing trough , the water evaporates from the surface under low pressure , water evaporating takes away heat so that the products rapidly and uniformly cool . In the meantime , cooperating with other comprehensive preservation measures , it can effectively keep freshness , reduce decay , prolong preservation time and shelf life .
Characteristics :
1 . High intensity and good thermal insulation performance ;
2 . Scientific designing , easy to be assembled or dissembled ; Gear shape connection of panels with eccentric sheave lock ; the whole panel is flat and the gaps on the panels are sealed by sealing materials to reach the great efficiency of the freezing system .
3 . Multi - products and specifications can meet different needs and requirements .
Room Temperature For Your Reference :
| Store Goods | Temperature Range |
| Processing Room | 10℃ |
| Fruit , Vegetable , Dry Food | 0℃ ~ 5℃ |
| Medicine , Cake , Pastry , Chemical Material | - 5℃ ~ 0℃ |
| Ice Storage Room | - 5℃ ~ - 10℃ |
| Fish , Meat Storage | - 18℃ ~ - 25℃ |
| Deep Freezer | - 25℃ ~ - 35℃ |
Energy Saving :
Preservation cold storage unit configuration plus evaporative condenser or from the use of a parallel unit is equipped with large chiller and cooling energy saving accessories , the use of Automatic defrost unit has a high energy efficiency , cooling capacity , low noise , safe and reliable . Equipped with efficient air cooling condenser radiator , selection of low - noise external rotor motor , and can effectively distribute the heat and , in extreme high pressure high temperature environment to maintain the normal , the refrigeration unit to play a highly efficient cooling effect , energy - saving cold storage evaporator High ceiling cooling fan , low noise , cooling capacity , Automatic defrost .
Intelligent Control :
Cold storage refrigeration electrical control system using automatic microcomputer control technology , intelligent computer temperature control , high - precision temperature sensor , temperature and humidity recorder ( with a warning device ) ; database is free to set the temperature ; automatic temperature thermostat , Automatic Turning , without manual operation , digital temperature display , make sure materials bank deposit safety .
Product features and specifications :
1 . Room size can according to the customer request design .
2 . Adopt eccentric hook assembly, convent and reliable .
3 . Full automatric comttrol , easy to operation and management .
4 . Temperature can be designed as customers requirement .
5 . Cold room refrigeration unit used the word famous brand , as copeland , danfoss .
6 . Insulation matenal fire rating : B2
7 . The refrigeration system uses R404a or R22 refrigerant .
8 . Energy saving , high efficiency .
